For over 30 years Cincinnati Test Systems has led the market in the integration of advanced technology and innovative features in standard leak test instrumentation. The multiple technologies and performance offered in our family of Sentinel instruments stand unmatched worldwide over a diversity of production environments.

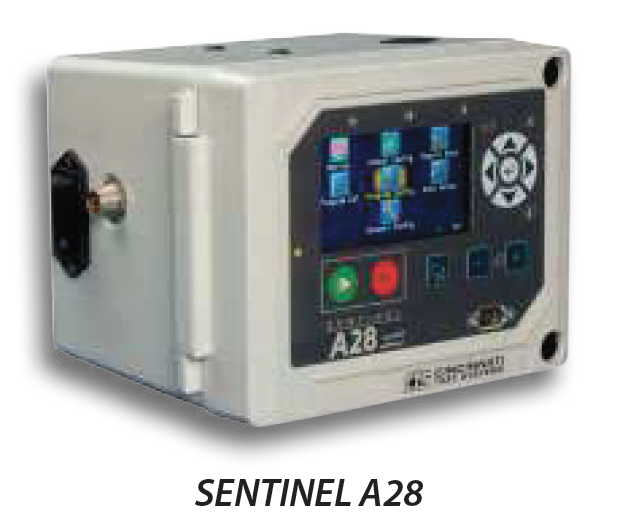

Our latest addition offers the compact A28™ instrument with Differential Pressure (DP) technology. Designed with a 32 bit processor and 24 bit A/D technology, the A28 series of instruments have become known for accuracy, speed, and repeatability.

A28 Advanced Features

■ Data storage to 12,000 test resultss

■ Test pressure accuracy, 0.4% uncertainty full scale (supplied with calibration certificate)

■ Flow and leak auto calibration- Characterizes the pressurization effects and geometric dynamics of the master part along with a NIST traceable leak standard to assure accuracy from zero to the specified leak limit.

■ 6 inputs/3 outputs - These inputs and outputs are independently programmable within each individual part program

■ Instrument 'Self Test'

■ Auto program calibration to leak standard

■ Part 'Quik Test' for shortened cycle times

■ Prefill cycle for gross leak failures

■ RS232 and Ethernet communication ports

■ EtherNet/IP™ communication

■ Test result data transmission with definable fields
