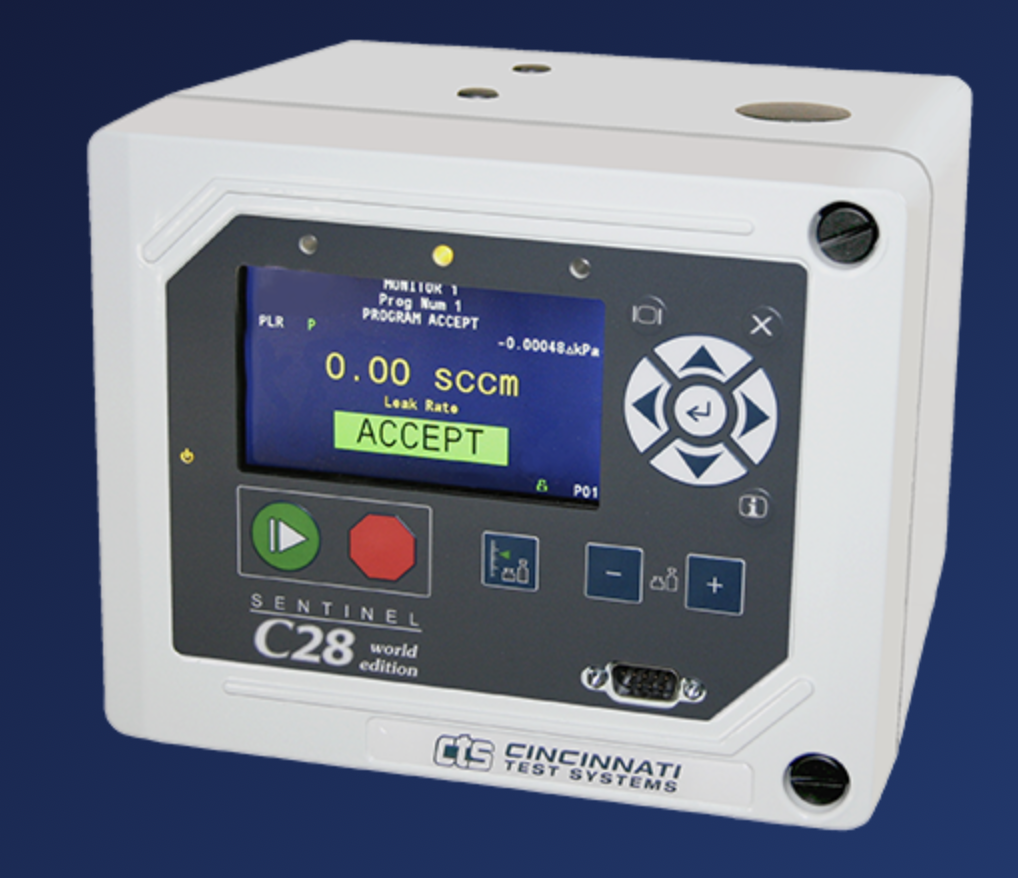

Sentinel C28WE

The Sentinel C28 is a versatile and highly advanced multi-function leak test instrument that provides high-resolution pressure decay, vacuum decay and occlusion leak testing with speed and repeatability in a compact wall-mount design.

Single Test Configurable for Pressure or Vacuum Decay Test Requirements

With the C28WE you can perform the following types of tests:

• Pressure/Vacuum decay-pressure change
• Pressure/Vacuum decay-with certified mass flow leak standard
• Pressure/Vacuum decay-pressure change/time
• Occlusion test (vacuum or pressure test)

Sentinel C28WE Product Highlights

• Test Pressure Range: -14.5 to 200 psig
• Storage for 32 pre-programmed test sequences
• Test Program can be selected through keypad, or digital binary input signals
• Test results evaluation is fixed (Fail/Pass/Fail)
• Test result output format is configurable
• 6 inputs / 3 outputs with 1 programmable tooling motion
• EtherNet/IP™ communication
• Simple, multilingual operator interface
